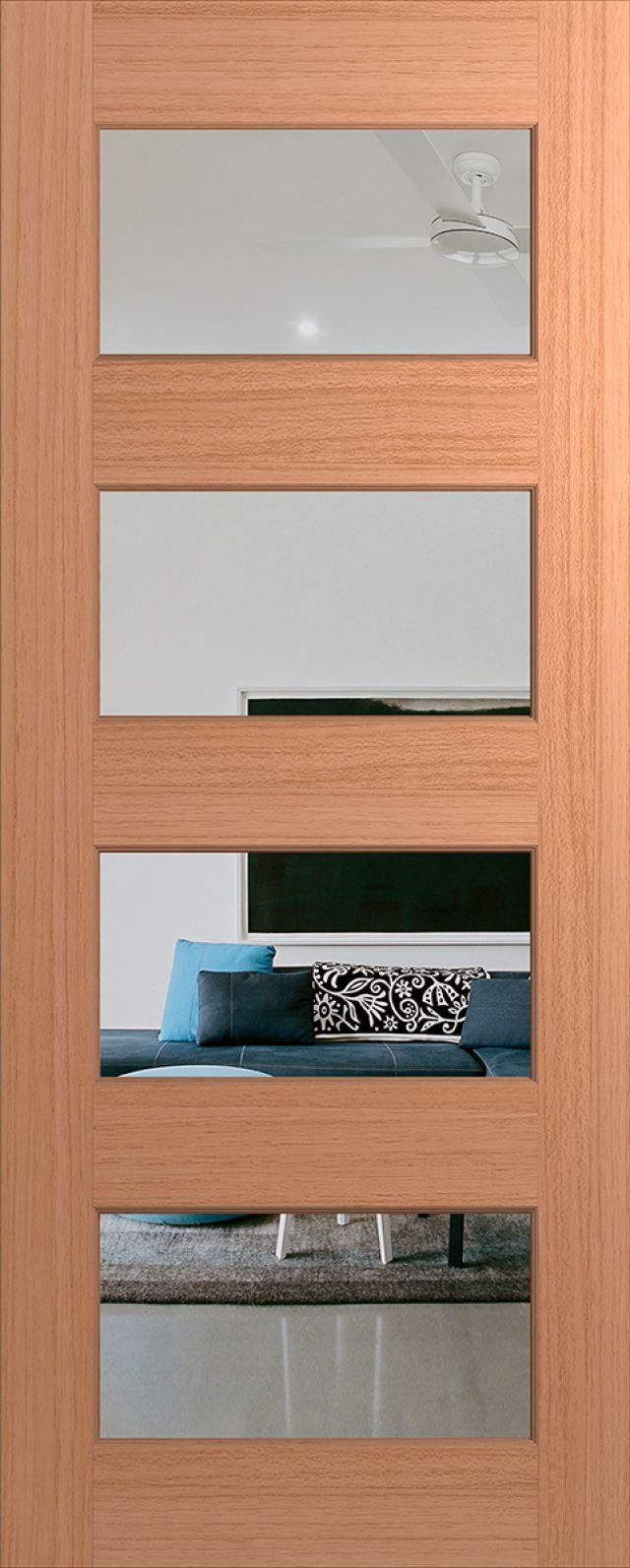

Savoy 820 – XS45

Price range: $639.00 through $4,609.00

Savoy 820 Size

Select Glass

Face Options

Clear

FEATURES

Grandeur for the entry of your home
Crafted from the best selection of timbers
Meticulously engineered for product stability

The Savoy 820 range is engineered using joinery construction techniques featuring veneered laminated timber stiles and rails. Designed from choice timbers with a variety of glass options to suit your custom style.

Door construction

All component sizes are nominal and prior to trimming. Construction may vary in different states.

Complies with Australian Standard AS 2688-2017 for the manufacture and importation of timber doors.

Timber is a natural material and colour, texture and grain variation can occur. These are not considered defects

Engineered Joinery

Size and weight

Standard Size(s)
2040x820x40mm
2040x400x40mm (XS4)

Custom Sizes
Min 1990x805x40
Max 2400x1100x40
(XS2,XS3,XS4 standard sizes only)
Weight
Approx 30kg based on 2040x820x40mm door

Sound Rating

Rw: 29
STC: 30

Bushfire Attack Level

BAL 12.5
Risk: LOW BAL12.5

Door Profile

XS Bead

Hinge Setup

(Recommended for solid/semi-solid doors under 2340×820 and hollowcore doors over 2340×820)
3 Hinge Setup

Savoy 820 Size	2040x820x40, Custom Min 1990x805x40 – Max 2400x1100x40
Select Glass	Unglazed, Clear, Cathedral, Grey Tint, Translucent, Africana, Low E, Geostep, Rice Paper
Face Options	Blackbutt, Merbau, SPM, Tassie Oak
