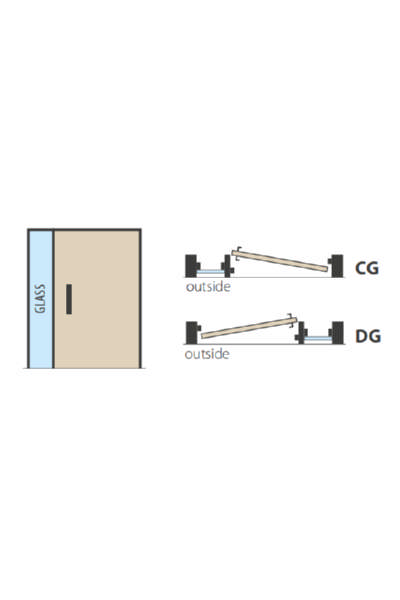

Weatherguard Frames – CG/DG 2100×1210
Price range: $1,257.00 through $1,852.00
■ Frame Suits 1 x door(2040×820), 1 x glass sidelite 5mm toughened clear
■ Premium energy efficient entry frames
■ Self-draining aluminium sill – improved moisture control
■ Frames have a full perimeter seal – improves energy efficiency and noise reduction
■ Frame material: H3 Treated Pine / Meranti as standard (Check your state)
■ Frame material: Merbau option
■ Doors not included
■ 820mm doors has 3 hinges
■ 1200mm doors has 4 hinges
■ *Oversized frames are supplied unassembled
■ **Wheelchair compliant sill will not protect from water ingress
| Frame Depth & Thickness | 140×40, 160×40 |
|---|---|
| Type | H3 Treated Pine, Meranti Assembled |
| Required Extra | Translucent Glass |
| Additional Extras | No extra, *Frame width upgrade for door over 820 wide up to 870 wide or sidelite over 400 wide (per frame), *Frame width upgrade for door over 870 wide up to 1200 wide (4 hinges) standard frame (per frame), *Frame height upgrade for doors from 2040 high to 2340 high (per frame), *Frame height upgrade for special height doors (per frame), Glazing bar horizontal add on to suit CG/DG/EG/FG (per side), **Wheelchair sill (per door), Supply and fit two reverse flush bolts to double doors (per door), Weatherguard Frame Sill Protector (per frame), Shrink wrap frame for additional protection (per frame), Hinge 100mm (each) |
